Preventing Flow Lines During Plastic Injection Molding
In the competitive world of plastic injection molding, delivering high-quality, visually appealing molded parts is non-negotiable. One of the most common surface defects that can compromise part aesthetics and integrity is flow lines in injection molding. Also known as flow marks, these subtle yet unsightly patterns appear on the surface of molded parts, often causing rework, waste, and customer dissatisfaction.
With over 70 years of experience in the plastic injection molding industry, we at UGP Plastics understand the challenges that manufacturers face and have honed the expertise to prevent and correct such issues. In this blog, we share actionable insights on how to avoid flow lines in molded parts and ensure optimal quality in your plastic components.
What Are Flow Lines in Injection Molding?

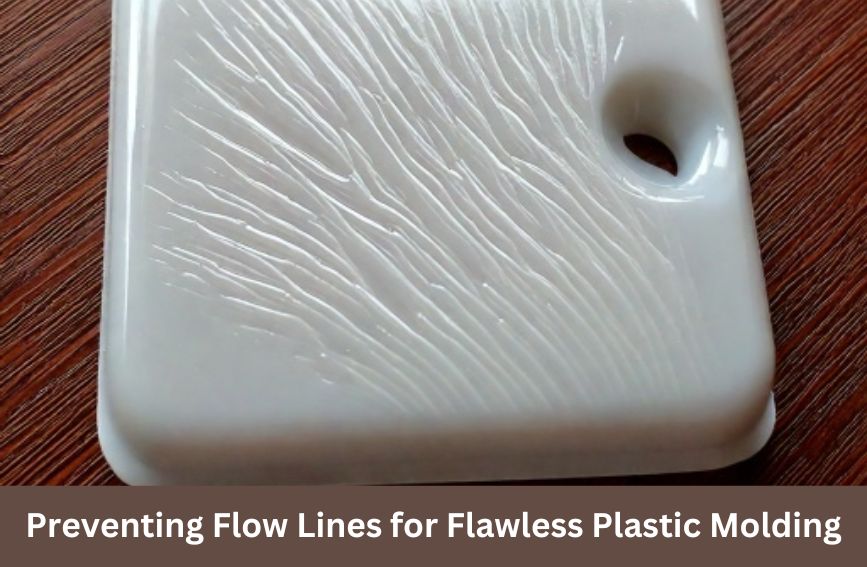

Flow lines injection molding defects are wavy streaks or discolorations on the surface of a molded part, typically formed due to variations in the flow of molten plastic as it fills the mold cavity. These lines often follow the path of the flow front and can be a result of improper mold design, inadequate processing parameters, or material inconsistencies.
Though flow lines in injection molding may not always compromise functionality, they certainly affect visual appeal, which is critical in industries like consumer goods, automotive, electronics, and display & merchandising.
Causes of Flow Marks in Injection Molding
To effectively prevent flow marks in injection molding, it’s essential to understand their root causes. Common contributors include:
• Low injection speed or pressure:
Insufficient pressure fails to push the material uniformly, causing cooling inconsistencies.
• Low melt temperature:
When the plastic cools prematurely, it results in visible flow lines.
• Improper gate location or size:
Poor gate design can disrupt smooth material flow.
• Poor mold design:
Sharp corners, long flow paths, or thin wall sections hinder flow uniformity.
• Material selection:
Some thermoplastics are more susceptible to flow line formation than others.
How to Prevent Flow Lines in Injection Molding
At UGP Plastics, we implement advanced techniques to mitigate and fix flow lines in injection molding through the following methods:
1. Optimized Mold Design
We design molds with uniform wall thickness, rounded corners, and proper gate placement to ensure a smooth flow path. Proper venting also reduces the risk of trapped air, which contributes to flow defects.
2. Controlled Processing Parameters
Adjusting the injection speed and pressure helps maintain consistent flow. We also regulate the melt and mold temperatures to prevent premature cooling of the plastic.
3. Material Expertise
With decades of experience, we help clients select the right material grades suitable for their applications, minimizing flow-related issues from the start.
4. Advanced Simulation Tools
Our team leverages mold flow simulation software during the design phase to predict and correct potential flow issues before production begins.
Quality Assurance: Our Commitment
We believe that flow lines injection molding issues are preventable with the right combination of design, process control, and expertise. At UGP Plastics, quality is embedded into every step of our production process. Our experienced engineers and technicians continually monitor and fine-tune parameters to deliver custom plastic molded parts that meet stringent quality standards across diverse industries, from automotive to technical and medical.
With over seven decades of industry leadership, UGP Plastics is your trusted partner for superior plastic injection molding services in Canada and North America. Whether you need high-performance parts with flawless finishes or expert solutions to prevent defects like flow lines in injection molding, our team is here to deliver precision, quality, and reliability.
Contact us today to discuss your next project and discover how UGP Plastics can bring your custom plastic part designs to life – free from flow marks and defects.
Frequently Asked Questions (FAQ):
What is a flow line in injection molding?
A flow line in injection molding is a surface defect that appears as a wavy streak or line on the molded part. It is caused by variations in the speed and temperature of molten plastic as it flows through the mold.
How do you prevent flow lines in injection molding?
Flow lines can be prevented by optimizing mold design, adjusting injection speed and temperature, ensuring proper gate placement, and selecting suitable materials. Mold flow analysis can also help anticipate and eliminate flow line risks.
What causes flow marks in injection molding?
Flow marks are typically caused by slow injection speeds, low melt temperatures, improper gate location, or poor mold design that causes the plastic to cool unevenly during the filling process.
What are flow lines in injection molding?
Flow lines are visual surface defects that follow the flow path of the molten plastic in the mold cavity. They can impact part aesthetics and are undesirable in most finished products.
How to fix flow lines in injection molding?
Fixing flow lines involves adjusting the process parameters (e.g., speed, pressure, and temperature), modifying the mold design, or changing the gate location/size. It may also include selecting different plastic materials or additives.
